At the 2016 HPA Technology Retreat’s Innovation Zone, Cinematographer Geoff Boyle demonstrated how he uses ACES in production and on his camera and lens tests. Geoff shares his thoughts here for the community at large.
Production and post has changed from a system where we had standardization, we had references to film and scanned negative, to a period over the past 15 years that I can only describe as the wild west, with no sheriff in town. Everyone has a different solution; everyone is doing “it” differently. Many times you don’t know where you are in terms of color, density and maintaining consistency.
On a recent film I did, we had a lot of communication problems. One VFX house wanted 10-bit DPX, but was it full range or legal? The other wanted TIFF. It was a nightmare of mis-matched gamma and levels. This of course was not as bad as a previous film where we had all kinds of problems when one VFX house did 5 reels and used the LUTs that I had provided (they were the LUTs that were created with the director over a period of several weeks before we started shooting) and the VFX house that did the last reel and insisted on using the “correct” LUTs.
When I do camera and lens tests, I want to remove or minimize all of the variables to be able to see the inherent qualities of the equipment that I’m testing. ACES does a great job on this, by moving the images into a huge and common colorspace and maintaining the full fidelity and range of the images in the process. It doesn’t change the look of the cameras - it won’t make an iPhone look like an Alexa (or vice versa) and similarly it won’t change the Alexa to look like the Canon C500, Varicam, RED or F65 either. It just allows you to start off on a better footing when you’re mixing these inputs.
What I did on my most recent tests

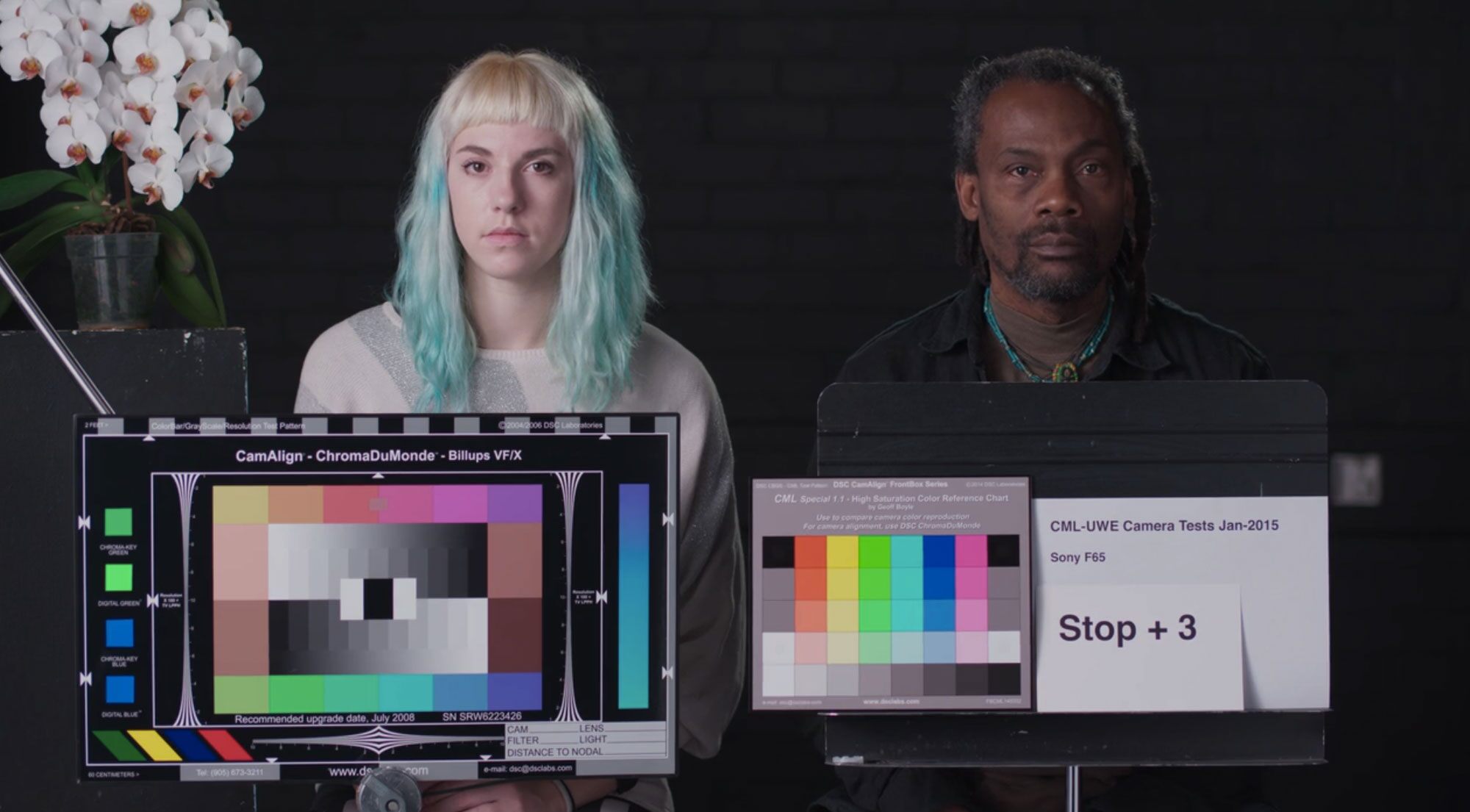

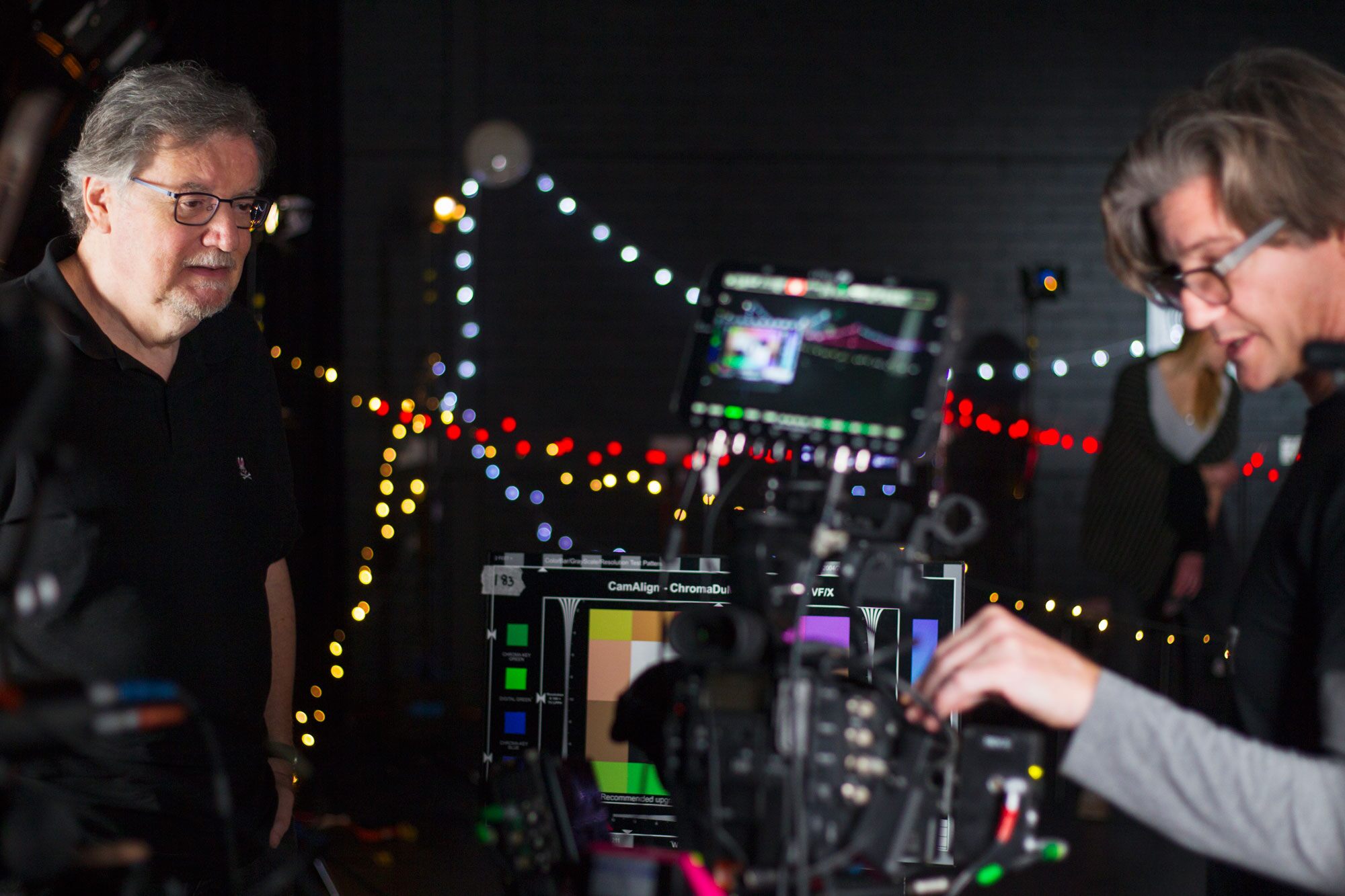

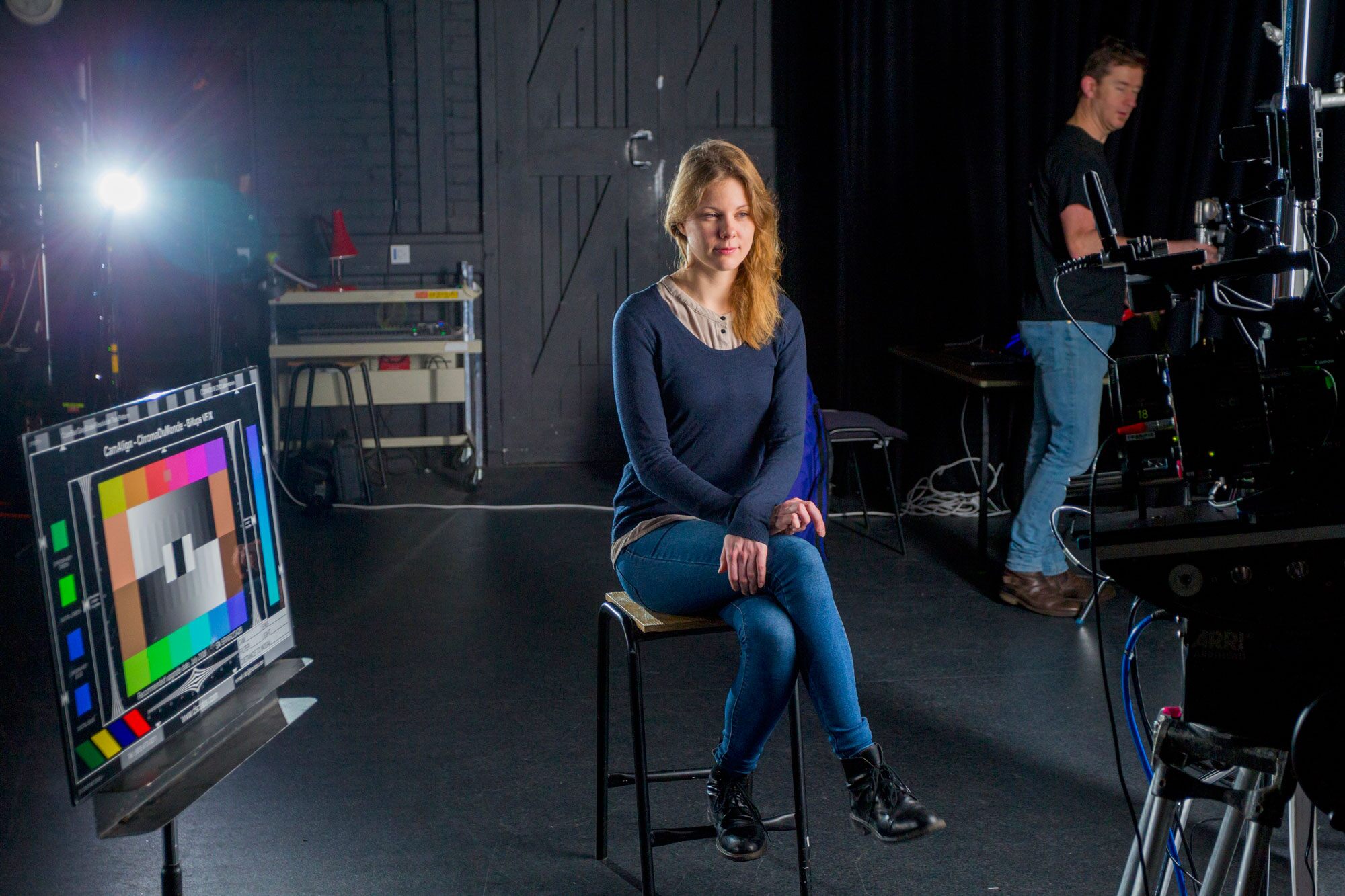

All cameras were set up according to the manufacturers’ instructions, an exposure meter was used to set exposure and a single lens was used, moving it from camera to camera. The whole approach was to reduce the number of variable as much as possible. Cameras were used to shoot a scene with exposure varying from +4 to -4 stops at half-stop intervals.
I then used Resolve in ACEScc space to assemble the tests into a single file per camera with two versions: one where I did nothing and let the images go where the exposure took them and one to correct the series of exposures to a “correct level” using only the Offset control. I also used Daylight for these tests, in which case the adjustment used was Exposure - same thing, different label. No color correction was done.
The first series showed how far the cameras varied from “standard” exposure and the second series showed the exposure range that the cameras were able to deal with without clipping or crushing or getting too noisy.
Working this way meant that the variables were limited to variations between cameras.
Different people have different information requirements for ACES
I think there’s a lot of confusion about ACES. You don’t need to know about color science to use ACES. It’s like a car: if you’re the driver, you need to know how to drive it, but you don’t need to know the science of how or why it works. If you’re a passenger, you just need to ‘buckle up’! So here are some thoughts for specific people in the chain:
Director – needs to know nothing. It’s a technical process that the majority of directors doesn’t want or need to know about. If you work with a competent crew they should be able to handle this for you so you can concentrate on story, talent and all the other things that make a great show.
Cinematographer – Needs to know very clearly the basics of the process. Not color science…just needs to know that what you shoot will get transferred (by your crew, using an Input Transform) into a very large and common colorspace that, unless you’re an alien, is more than your eye can see. Then in order to view it on-set or in post, your crew will choose an appropriate Output Transform that matches the colorspace and characteristics of the display you’re using at any given time. I would say that most DPs in the old days didn’t know much about what happens in the labs. They trusted the labs and the same can be true here…your post house is your digital lab
DIT (or post encoder) - needs to know more about the technical details and choose software and hardware configurations that follow the ACES guidelines and best practices. They’ll need to be aware of the implications of the ACES colorspace that is used for color correction (ACEScc) and how to exchange the files into and out of this colorspace. Fortunately many of the color correctors and on-set tools can recognize and apply the appropriate Input Transform. In my experience, ACES doesn’t drastically alter the way that a DIT works.
Offline editor – needs to know nothing.
Colorist – colorists with a film background will be comfortable because they’re used to working in a “log” environment and are used to dealing with LUT’s. Television-oriented colorists may need to adjust a bit more, but it’s important to say that ACES is not taking control away, it’s taking drudgery away and giving you more time for grading, because all of the images are coming into a common place. Before ACES I spent a lot of time trying to get the most out of a camera LUT, trying different LUT’s…with ACES it’s just so much simpler.
Producer - needs to know that it’s likely going to be cheaper because it’s faster. Also they’ll have less finger-pointing about workflow issues and post confusion. The issues of “we didn’t cause that, they caused that” can be easily tracked because with ACES you have a standard you can refer back to and it brings some clarity back to the process.
Lower Budget Productions have a lot to gain from using ACES
On a low budget or ‘no budget’ production you may not color correct on set, but you still get benefits from ACES:
- Repeatability and consistency. I know what my color pipeline will be so it frees me up to takes risks on set.
- I have a standard so I don’t have to worry what my limits are, I know what they are! it means I can push contrast and exposure further because I know exactly where I am.
- Saves time therefore money on the grade.
- It gives a good picture from the outset, letting the colorist concentrate on making it a great picture rather than trying to find out what LUT he should be starting with.
- A lot of the tools that you already own or rent can handle ACES and will auto-recognize, or with minimal set-up, help you manage the ACES process. The Input Transform is auto-selected and you just have to choose Output Transform to match the display you are using.
Here are the top 5 things I think people need to know about ACES:
- People think you need to know about color science to use ACES. This is not true.
- ACES requires a device-specific way to import and export your material and these import and export transforms are freely available from the equipment manufacturers. If you find a situation where it’s not, the methodology for creating the transforms is free and available
- ACES is a larger colorspace than the device you’re currently using, so it will not degrade your image, it will protect it. Furthermore, ACES does not alter the look of your footage.
- ACES has use cases for all sizes of productions. It’s not just for VFX heavy blockbusters.
- Standardization can be a good thing, and ACES restores much-needed standards and standardization to our industry.
For products that are integrating ACES, its simple! The software will probably identify the Input Transform needed, but if it doesn’t, it’s as simple as picking your camera from a drop down list. You then need to make sure that your software’s working space is set to ACEScc. Output is another selection from a drop down list, just select the format you’re going to.
Now how hard is that?
